| Category | Details |
|---|---|
| Model | PRIME B760M-A-CSM |
| News & Updates | 2024/08/12: New BIOS with Intel microcode (0x129) enhancing stability for Intel Core 13th and 14th Gen processors is now available. Check support site for updates. |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC) to 4800MHz Non-ECC, Un-buffered Memory |
| Graphics Outputs | 1 x DisplayPort (max. 4K@60Hz), 2 x HDMI™ ports (4K@60Hz) |
| Expansion Slots | 2 x PCIe 4.0 x16 slots (1 supports x4 mode, 1 supports x1 mode) |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB Ports (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

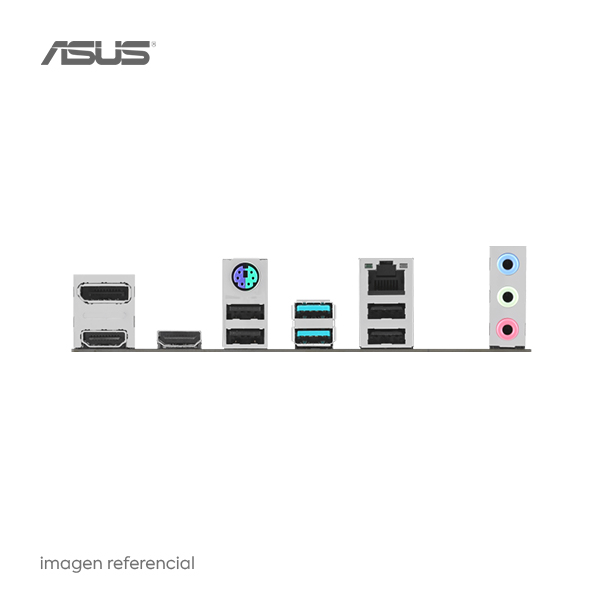

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2, 4 x USB 2.0, 1 x DisplayPort, 2 x HDMI™, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo |
| Internal I/O Connectors | 1 x 24-pin Main Power, 1 x 8-pin +12V Power, 2 x M.2 slots, 4 x SATA 6Gb/s ports |

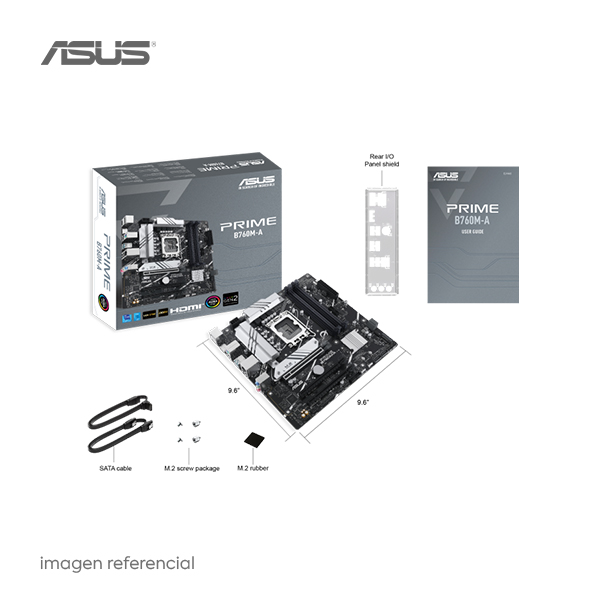

| Form Factor | mATX (9.6 inch x 9.6 inch) |
| Operating System Support | Windows® 11, Windows® 10 64-bit |
