| Elemento | Descripción |
|---|---|

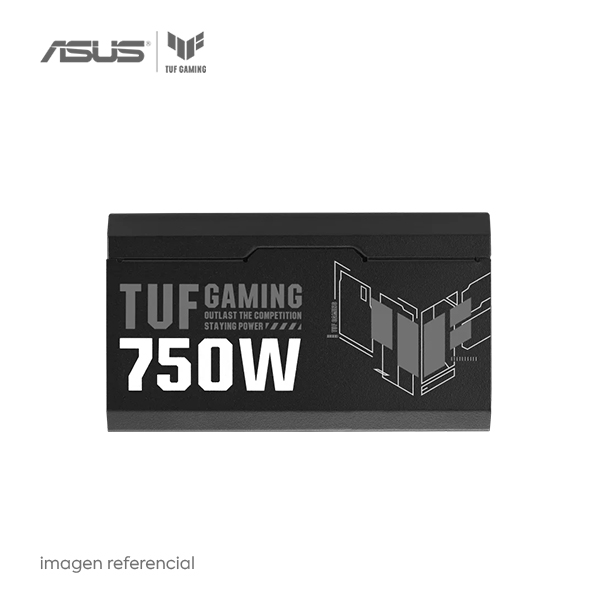

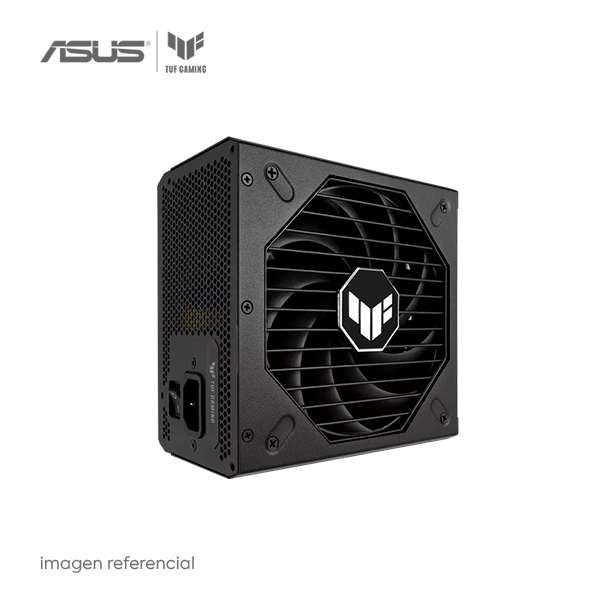

| Model | TUF Gaming 750W Gold |
| Intel Form Factor | ATX12V |
| Tipo de PFC | Active PFC |
| Estándar ATX | ATX 3.0 |
| Dimensiones | 150 x 150 x 86 mm |
| Eficiencia | 80Plus Gold |
| Características de Protección | OPP/OVP/UVP/SCP/OCP/OTP |
| Materiales Peligrosos | ROHS |
| Rango de Entrada de CA | 100-240Vac |
| Voltaje de la Salida DC | +3.3V +5V +12V -12V +5Vsb |
| Carga Máxima | 25A 25A 62A 0.8A 3A |
| Carga Combinada | 130W 130W 744W 9.6W 15W |
| Entrega Total | 750W |
| Conectores |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Contenido del Paquete |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Peso | 2.38kg (single PSU) |
| Tecnología 0dB | Supported. The fan shuts off entirely when the PSU is under certain load |
| Botón del Ventilador 0dB | No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load. |
